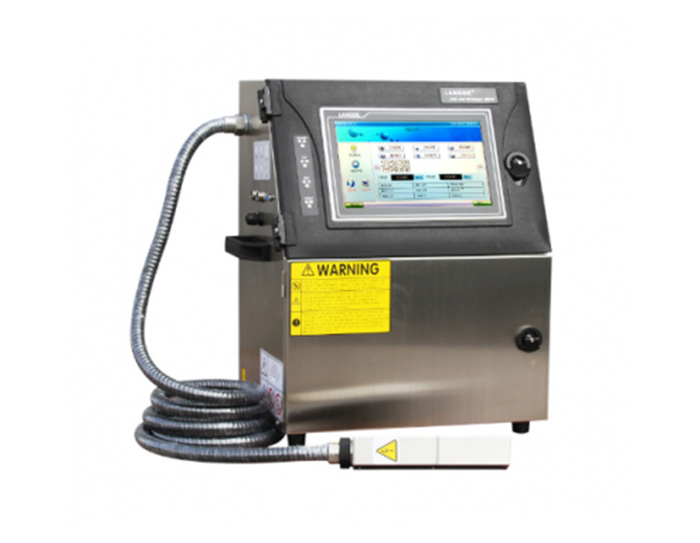

Product Details
Standard function
Number of lines printed: 1-6 lines
Number of printing points: 5x5 5x7 7x9 6x12 8x16 12x16 11x24 16x32 35 dot matrix within the lattice information
Printing speed: 3 m / s (5x7)
Operation interface: color touch screen, Chinese and English menu?
Store information: Unlimited storage of print information
Printing content: date, time, automatic date, automatic validity period, class number, batch number, serial number, four groups of counters, meter meter, self-patterning, variable barcode, two-dimensional code, pseudo-code, multi-language, various Font (support personal signature)
Printing length: 1024 characters
Chinese input: Pinyin input method Area code input method
Printing ink: black, blue, red, etc.
Printing height: 1 ~ 15mm (adjustable)
Printing distance: 0 ~ 30mm (adjustable)
Font widening: 1 to 9 times, can be widened for a single character
Font direction: normal word, reverse word, inverted word, reversed word, can set the printing direction independently for a single character
Font spacing: 1 to 8 times, can be edited point by point
Diaphragm pump four pump integrated design
Adopting the most advanced diaphragm pump in the industry, the ink pump, solvent pump, recovery pump and circulating pump are designed in one pump, eliminating the traditional gear pump and eliminating the need for compressed air. Compared with the gear pump, it has the following advantages:
1) The service life is several times that of the gear pump
2) Using the results of “bionics” research, it can work in a nearly zero wear mode and the maintenance cost is quite low.
3) It will not affect the ink due to the mechanical friction of the gear pump, which can greatly extend the ink life and reduce the production cost.
4) Adopting optimized ink system design, the consumption consumption is only 10-20% of the traditional air source machine, 60-70% of the gear pump machine.
Unique nozzle triple anti-blocking function
A has an independent cleaning pump, which automatically sprays the solvent cleaning nozzle and the recovery pipeline every time it is shut down. When starting up, it automatically sprays the solvent cleaning nozzle and the recovery pipeline before inkjet water.
B The unique nozzle double valve structure ensures that the ink in the ink system can be thoroughly cleaned and returned to the ink tank for automatic nozzle cleaning. Greatly reduce daily maintenance work and improve the stability of equipment operation.
The C nozzle piece can be removed separately and placed in the ultrasonic wave dissolver to completely solve the blockage problem.
Advanced ink viscosity automatic control system
It adopts advanced ink viscosity control system and automatically adjusts it. It is not affected by environmental temperature changes and the length of boot time. It makes the inkjet printer always maintain perfect printing quality. Viscosity control adopts the method of detecting float movement time, compared with other brands. The printer detects the ink using the drip time method more accurately and reliably.
Powerful printing
You can edit other non-work information while the machine is working, and instantly switch the print content.
Anti-counterfeiting code printing can be realized online, variable barcode printing
It can receive BMP patterns compiled by computer, and can make special characters or patterns directly on the touch screen to support personal signatures.
It has special functions such as code synchronization, photoelectric synchronization, synchronizer synchronous distance setting, N-time printing on-line detection, and N-time detection and one-time printing.
You can set the counter step size, increment, decrement, cycle printing, etc. at will.
Perfect digital circuit control system
The “all digital intelligent” menu system can automatically update the important parameters of the circuit in the ink circuit system, operating data and other important parameters and can be digitally adjusted to make the equipment running state clear at a glance. The automatic fault detection system automatically prompts through digital menus and signal lights to eliminate faults in a timely and effective manner.
Special harsh industrial environment
Anti-wear stainless steel chassis, IP55 protection grade, unique nozzle positive pressure wind function can resist dust and water intrusion, suitable for all kinds of harsh environments. It has multi-channel ink system processing system and fault alarm display function to ensure more stable operation and easy maintenance. The multi-channel controller output port is reserved, and can be used in conjunction with the customer field device as needed.
